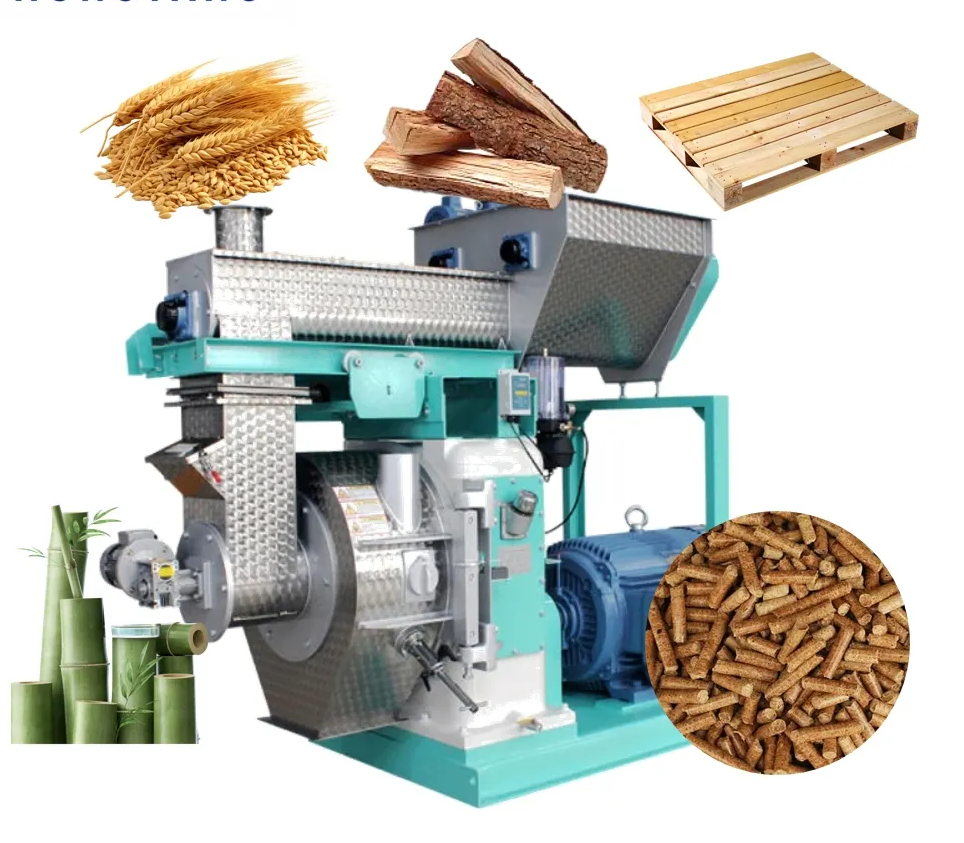

New large-scale fully automatic biomass pellet machine

Product Introduction

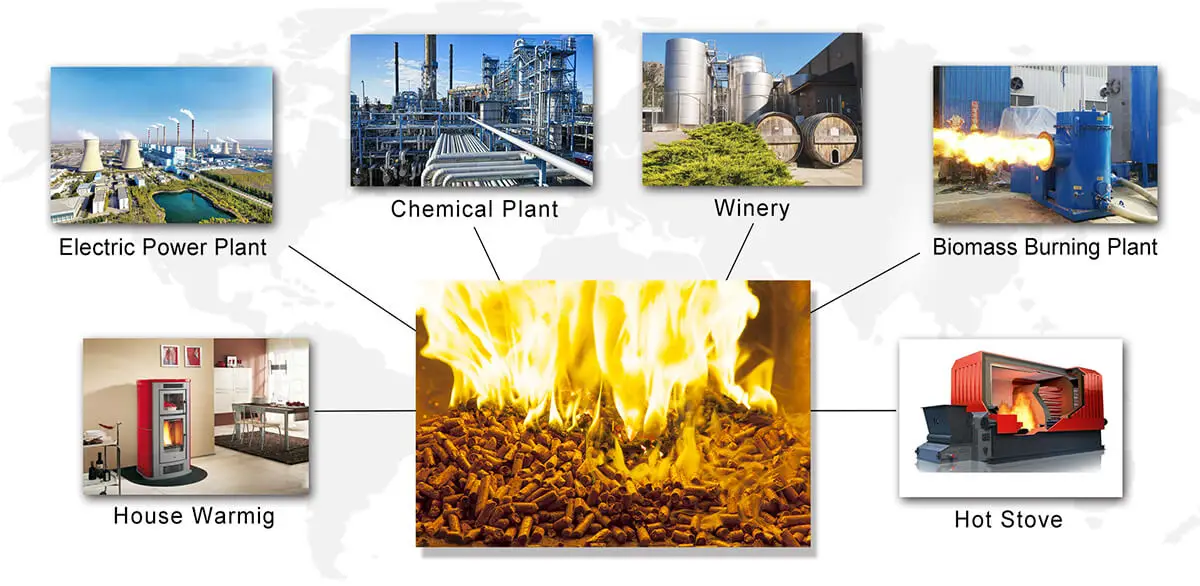

Wood pellet machine is a biomass new energy source equipment and the granulation equipment of wood chips production. It is eucalyptus, birch, poplar, fruit trees, bamboo chips and crop straw as raw materials. Through the crushing, drying, screening, granulation, cooling, packaging and other processes to produce finished wood chips. Its products are used in biomass power generation, boilers, fireplaces, household appliances and so on.

Feature improvement

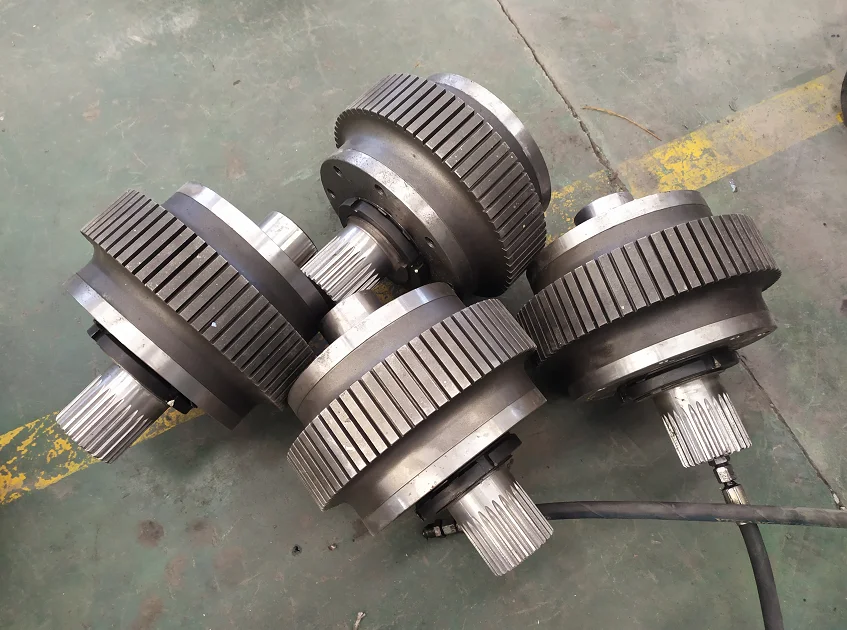

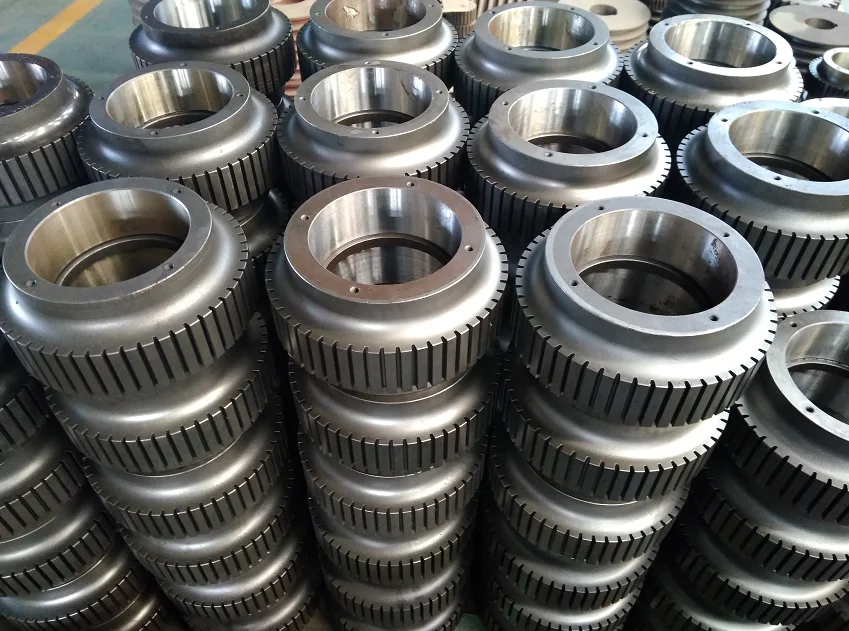

1.Following the acclaimed industrial-grade reducer drive structure and further optimize the speed ratio, make the perfect combination of the transmission efficiency and durability. Its excellent performance is not a simple gear or belt drive models can be compared. 2.Change “blocking” as “sparse”. From the structure to start, completely change the particle mechanism of particles in the long-term use of raw materials after the increase in the shortcomings of leakage. 3.Optimizing automatic lubrication system. In the realization of no downtime can automatically lubricate the various parts of the machine, on the basis of the bearing and further equipped with a pressure valve to stimulate the amount of grease filling and timely automatic adjustment. It can achieve truly perfect lubrication and save per gram of grease. 4.Optimizing the granulation chamber of the material device, once again enhance the granulation efficiency and quality. 5.Using traditional alloy material to product, and on the basis of the pressure roller manufacturing process of heat treatment. Then carrying out second special treatment. So that the durability of the pressure roller on the next level and achieve the current industry-leading level.

Details Images

Working principle of Cheap price charcoal briquette making machine

First, the machine adopts the motor direct connection. The motor is connected to the gear shaft via a gear coupling. Through the gear 90 ° change, horizontal motor drive vertical hollow spindle. The spindle drives the press roll to crush the inner surface of the mold to complete the pressing process. When it’s working, the material falls vertically on the surface of the shelf plate by the drawing inlet. Through the rotation of the shelf plate to make the material evenly in the mold cavity surface.(The contact surface of the press roller with the mold) The powder material passes through the hole of the mold under the rolling of the press roll.(Evenly distributed in the mold on the surface of the hole) This process is subject to high pressure, high temperature,physical changes or appropriate chemical changes.(According to material) It promotes the powder material to form a continuous cylindrical solid body. The cylindrical solid body is continuously extended until it is cut by the cutter around the uniform mold to form a certain size of the particles. The particles scattered around the mold are concentrated from the teeth to the discharge port. The particles are automatically dropped under the action of gravity, and the granulation process is completed. Note: All port. parts of the machine are installed on the machine surface machining, assembly accuracy, excellent machine performance.

Raw Material

The biomass pellet machine is applied to the material with low adhesiveness and low shaping ,such as the rice husk, sunflower seed husk, peanut shell and other fruit shell branch, trunk, bark and other wood waste; a variety of crop straws, rubber, cement ,ash and other chemical materials. The pellet machine is widely used in the feed plant, wood processing, fuel plant, fertilizer plant and chemical plant etc. It is the ideal pressing shaping equipment with low investment and high profit.
1. Raw materials diameter requirement : 3-5mm(If large ,crusher machine should be used)
2. Raw materials moisture:15-25%.(If beyond the scope,dryer machine should be used )
